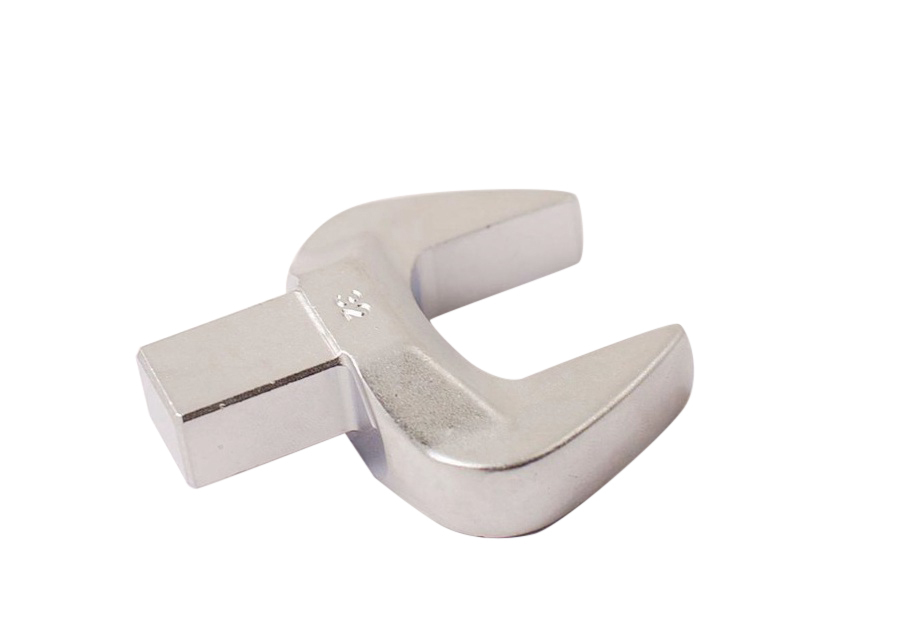

Open End Head 14x18mm Rectangular Insert Connector for Torque Wrench Size: 13-41mm

No.912013

AUD32.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Size:

13mm

14mm

15mm

16mm

17mm

18mm

19mm

22mm

24mm

27mm

30mm

32mm

34mm

36mm

38mm

41mm

Quantity:

0 in stock

Add to Favorites (0)

1/1

Description

Exceed ASME B 107.14M high quality universal head, suitable for a variety of complex enviorment.

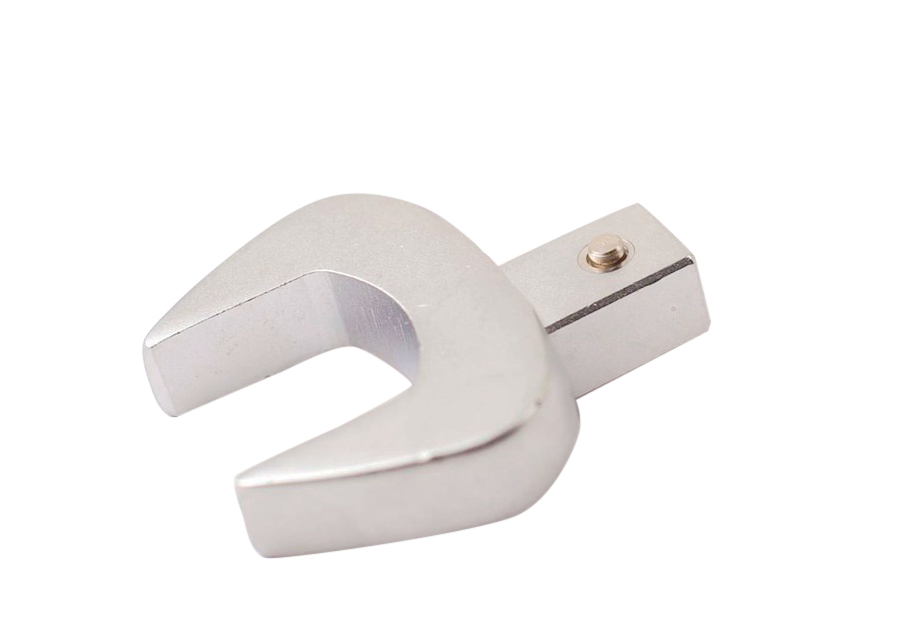

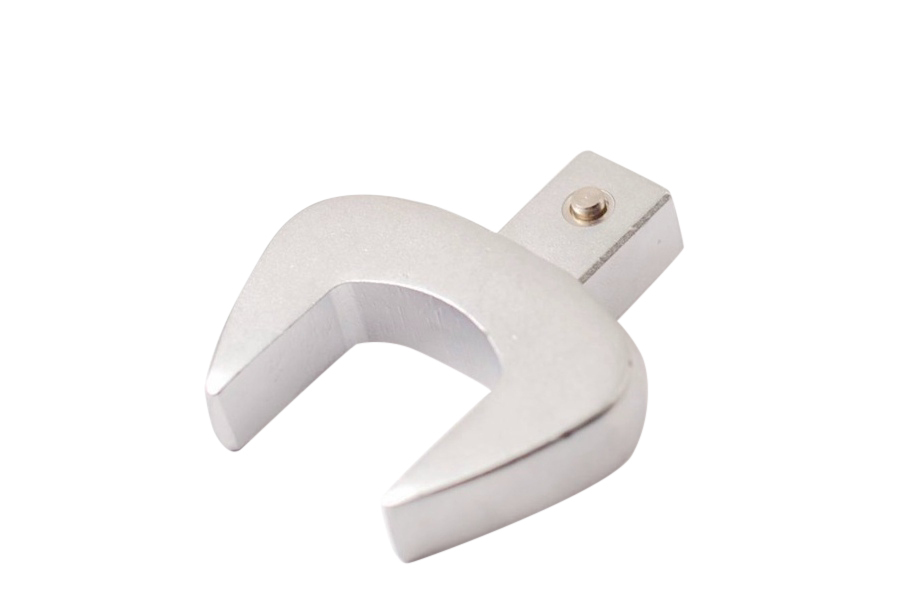

Interchangeable attachment head inserts of torque wrench with DIN rectangle connector 14×18 mm. Attachment head is secured by a spring-loaded lock pin.
Open end attachment heads are ideal, when Interchangeable insert with the same centre line may be interchanged among themselves arbitrarily, no need to change the torque wrench to be adjusted again.
Torque wrench open end fittings opening offset is a single piece from alloy steel. The manufacturing method provides strength and durability rarely attained by the more common cutting – welding method.
Open-end type Interchangeable head for piping work operating in a narrow space also suitable wrench for hydraulic piping tighten.

Art no.	Size(mm)	Rectangle	Weight(g)	Max Torque (NM)	W(mm)	L1(mm)	H1(mm)	H2(mm)
01912013	13mm	14x18mm	120	62	29	57.5	21.5	7
01912014	14mm	14x18mm	120	86	31.5	58.5	21.5	7
01912015	15mm	14x18mm	120	104	33.5	59	21.5	7
01912016	16mm	14x18mm	130	124	36.5	59	21.5	7
01912017	17mm	14x18mm	120	139	37.5	60	21.5	8.5
01912018	18mm	14x18mm	140	155	39.5	60	21.5	8.5
01912019	19mm	14x18mm	140	186	40.5	60	21.5	8.5
01912022	22mm	14x18mm	170	279	47.5	62	21.5	10.5
01912024	24mm	14x18mm	170	341	50.5	63.5	21.5	10.5
01912027	27mm	14x18mm	240	432	59	70.5	21.5	13.5
01912030	30mm	14x18mm	250	570	63	71	21.5	13.5
01912032	32mm	14x18mm	250	650	64.5	72.5	21.5	13.5
01912034	34mm	14x18mm	260	745	66	73.5	21.5	13.5
01912036	36mm	14x18mm	250	894	67.5	74	21.5	13.5
01912038	38mm	14x18mm	230		67.5	74	21.5	13.5
01912041	41mm	14x18mm	330	1154	83	82	21.5	13.5
